Electrical Diagram |
| |
Circuit Diagram for 707 model (4-20mA)

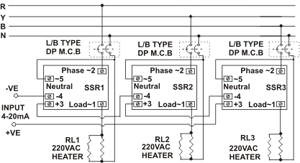

Three Phase Star Connection with Neutral |
Circuit Diagram for 707 model (4-20mA)
Phase Angle Controller |
|
 |
- Please connect terminal "2"
as a phase only.And "1" as
load only.otherwise SSR will
not operate.
- Do not give DC I/p. voltage at
4-20mA I/p.Teminals of SSR
otherwise Input of SSR will fail
- Our circuit will not work in
|
|
| |
|
| |
Circuit Diagram for 707 model (4-20mA)

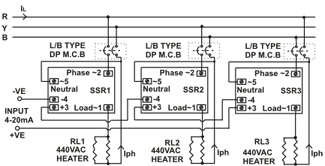

440 VAC Load in Delta Connection |
Circuit Diagram for 707 model (4-20mA)
OP. Phase Angle Controller |
|
 |
|
| |
|
| |
Circuit Diagram for 701 model

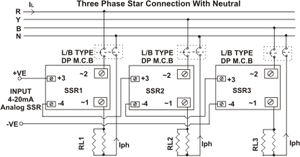

These Phase Star Connection with Neutral |
Circuit Diagram for 701model (4-20mA)
Phase Angle Controller |
|
 |
|
| |
|
| |
| Wrong Connection |

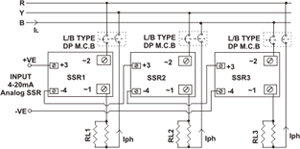

Circuit Diagram for 701model 440 VAC
SSR Delta Connection |
|
 |
|
| |
|
| |
