  Products >>> Relays >>>4-20mA Phase Angle (Back to Back SCR )

  4-20mA Phase Angle (Back to Back SCR )

# 707 Model

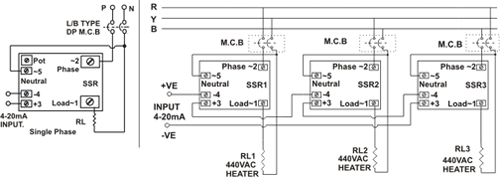

weight : @110 gms. 		Circuit Diagram Performance Graph



  Precaution

  • Used for resistive/inductive transformer load only
  • Do not give DC Voltage at 4-20mA input control of
    SSR otherwise input of SSR will fail.
  • Phase Line voltageshould be in range of 230 VAC
    +10 % or 440 vac+10 %
  • SSR will not work if heater connnected in star
    without neutral.
  • Heat sink temperatures should not increase700C
  • For dv/dt and transient voltage uses dv/dt
    snubber and metal

  Pot Used For

  • Line Voltage variation
  • Balancing voltage in each phase at fixed

  Application

  • Glass industries/Furnace industries
  • Paper industries
  • Hot runner system of plastic Processing Machinery
  • Polyester yarn Processing industries
  • The load power is Proportional to controller input
  • Output to body 4kV isolation
  • Heat Sink + Din Rail Mounting (35mm)


SSR
Type No
OUTPUT
Current Amp
with Heat Sink
Voltage
Current amp
at 200C
at 550c
AC-3
(Back to Back SCR) Input : 4mA Proportional signal or 1-10VDC
707 PHT 24 25 420 230 VAC 25 12 Amp 4
707 PHT 24 50 420 10% 50 AC-1 22 Amp 15
707 PHT 24 100 420 Star 100 AC-1 42 Amp 30
707 PHT 24 150 420 With 150 AC-1 85 Amp 60
707 PHT 24 200 420 Neutral 200 AC-1 120 Amp 90
SSR
Type No
Fusing
curren tI2T
Short Circuit
Protection by "B"
type M.C.B. In
AC-3 duty
Type of
Heat Sink
USD/Each
707 PHT 24 25 420 500A2S 6Amp N 41.40
707 PHT 24 50 420 3000A2S 16Amp L 47.75
707 PHT 24 100 420 8000A2S 32Amp X/L 73.20
707 PHT 24 150 420 15000A2S 63Amp W 120.90
707 PHT 24 200 420 25000A2S 100Amp W 127.30
(Back to Back SCR) Input : 4mA Proportional signal or 1-10VDC
SSR
Type No
OUTPUT
Current Amp
with Heat Sink
Voltage Current amp
at 200C 		at 550c AC-3
707 PHT 44 25 420 440 VAC 25 12 Amp 4
707 PHT 44 50 420 10% 50 AC-1 22 Amp 15
707 PHT 44 100 420 Delta 100 AC-1 42 Amp 30
707 PHT 44 150 420 without 150 AC-1 85 Amp 60
707 PHT 44 200 420 Neutral 200 AC-1 120 Amp 90
SSR
Type No
Fusing
curren tI2T
Short Circuit
Protection by "B"
type M.C.B. In
AC-3 duty
Type of
Heat Sink
USD/Each
707 PHT 44 25 420 500A2S 6Amp N 41.40
707 PHT 44 50 420 3000A2S 16Amp L 47.75
707 PHT 44 100 420 8000A2S 32Amp X/L 73.20
707 PHT 44 150 420 15000A2S 63Amp W 120.90
707 PHT 44 200 420 25000A2S 100Amp W 127.30


440 VAC Load Without Neutral In Delta Connection


#707 Model Diemnsion
Precaution
  • Please connect terminal "2"
    as a phase only.
  • and ";" As load only.


Heat Sink
  • Weight : 650 gms.
  • Type"L-100" 701/707/
    705 model
  • current up to 40Amp.
    Size : 100mm(W)x100mm(L)
    x 49mm(H) + SSR
  • Price US $11.95+ US $0.95
    Din Rail


Input
Output AC :
RMS on state current
at 20 0 C
IT
AMP
25
50
100
150
200
On state voltage drop
@rated current
VTM
VRMS
3 to 4
3 to 4
3 to 4
3 to 4
3 to 4
Peak one cycle surge on-50H
zstate current (non-repetitive)
ITSM
A
320
800
1250
1700
2250
Fusing current
I2T
A2S
500
3000
8000
15000
25000
Max. forward leakage
current
IDRM
mA
12
12
12
12
12
Holding current
IHO
mA
175
250
250
250
250
Critical rate of rise off
state voltage
dv/dt
V/S
500
1000
1500
1500
1500
Thermal resistance Rth
(Junction to case) DC
JC
oC/W
2.3
2.5
2.5
2.8
2.8
Operating temperature
oC
-40 to 70
-40 to 70
-40 to 70 -40 to 70
-40 to 70
Frequency range
HZ
47 to 63
47 to 63
47 to 63
47 to 63
47 to 63
Repetitive peak off state
voltage(VDRM)
1200 VPK(480 VRMS)


Pages : 1 2
